Pole Mounted Circuit Breaker: What to Know
To guarantee the reliability and security of the electrical distribution system, you must know how important the Pole Mounted Circuit Breaker is. It plays a huge role in safety and efficiency; therefore, it is very common in several applications. This article will help you understand pole mounted circuit breakers, including what they do and where they are used most often.

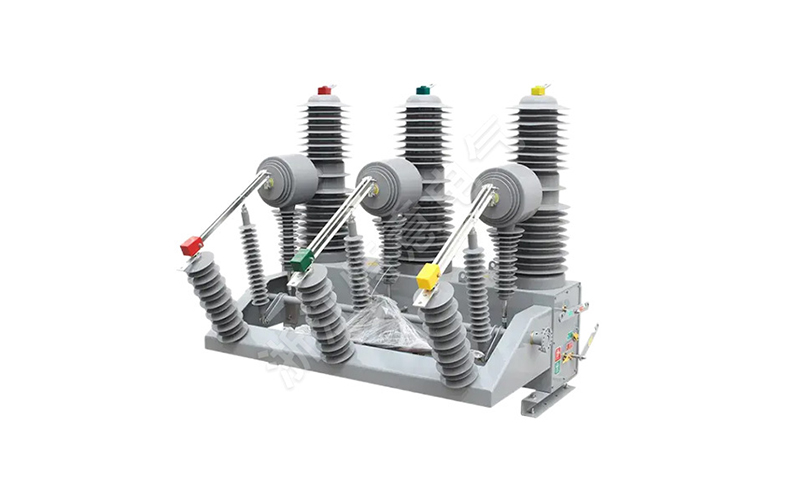

What Is a Pole Mounted Circuit Breaker?
For continuous protection of electrical circuits, in the event of an overload or short-circuit condition, Utility Pole-Mounted Circuit Breakers (also referred to as Circuit Breakers) are used on utility poles to disconnect electrical service from a distribution transformer. A utility pole-mounted circuit breaker is defined as a switch that will automatically open upon detecting an excessive flow of current (overcurrent). They are typically located outdoors for the purpose of providing power to a residential home, commercial building or industrial facility through a transformer.
How Does a Pole Mounted Circuit Breaker Work?
A pole mounted circuit breaker is designed to work by identifying an electrical fault in the circuit. Whenever the current enters a range above a certain point, it will trip out the breaker mechanism and open the circuit to stop the flow of electricity through it. Many of the newer pole mounted breakers now use newer technology, such as the use microprocessor based electronic circuitry that improve the accuracy of fault detection and the speed at which the breaker will react to a fault when it occurs. In addition, many newer pole mounted breakers have remote monitoring capabilities that allow the user to obtain real-time information about the conditions of the circuit.
Types of Pole Mounted Circuit Breakers
Pole-mounted circuit breakers come in many styles to fit various systems and specifications:
1. Oil insulated circuit breakers function with the aid of an insulating and cooling medium (oil) and can therefore be used in high voltage applications.
2. Vacuum Circuit Breakers (VCB) - Because of their small size and weight, the VCB have become a very popular choice of switchgear equipment. The arc produced when a circuit is opened uses a vacuum to extinguish itself.
3. Circuit Breakers Utilizing Sulfur Hexafluoride (SF6): They are high-voltage, gas-insulated circuit breakers with exceptional electrical insulating abilities.
Common Applications and Installation Scenarios
Pole Mounted Circuit Breakers are commonly employed in various scenarios, including:
- Power distribution networks are vital elements for safeguarding transformers and substations.
- Rural and suburban electrical systems, providing increased reliability for remote power lines.
- Solar energy systems manage the electric energy as it travels on its way to the grid from photovoltaic solar panel systems.
Pole mounted breakers provide numerous protective and supervisory elements required in various applications in the electrical field, highlighting the diverse nature of the industry.
FAQ
What is the average lifespan of a pole mounted circuit breaker?
Depending on the environment and type, circuit breakers mounted on poles may have different average lifespans when maintained correctly but last anywhere from 10 to 30 years.
How can I determine if my pole mounted circuit breaker needs replacement?
It is an indicator that your system requires replacing when you experience frequent tripping, have suffered physical damage, or are using technology that is outdated based on today’s standard of technology.
What maintenance is required for pole mounted circuit breakers?
To make sure that circuit breakers work properly they need to be routinely inspected and tested. In addition to this there will be specific maintenance instructions provided by the manufacturer. These should always be adhered to.
To sum up, if you are responsible for the installation or maintenance of electrical systems, it is important to know the basic characteristics and functions of a Pole Mounted Circuit Breaker. These devices are used to protect users and electrical systems from faults; they also help to make the overall electrical system more reliable. Additionally, by knowing what type of Pole Mounted Circuit Breaker is available and how they are used, you will be able to make better decisions when installing, maintaining, or upgrading these types of devices within your facility.
