Single Phase Collector Box: Types and Uses

The Single Phase Collector Box is a key element in the electricity distribution systems. The equipment is intended to enable connection and collection of electric circuits. The Single Phase Collector Box performs a key role in ensuring efficient power distribution. This article focuses on different varieties of single phase collector box, their usage, and important selection factors.

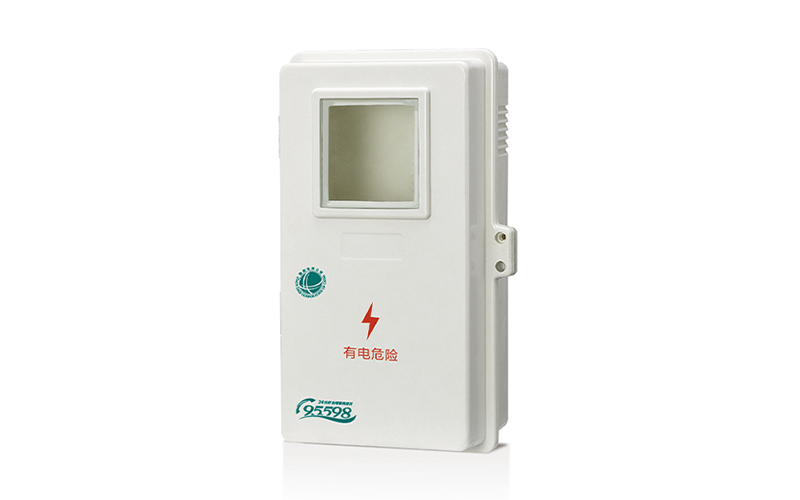

What Is a Single Phase Collector Box?

A collector box for single-phase use is defined as an enclosure providing termination points for a single-phase electrical system. This box is essential as it organizes and protects the electrical connections, resulting in a secure manner of the electric supply. Single-phase collector boxes have numerous applications in both residential and commercial places.

Main Types of Single Phase Collector Boxes

Phase Segregated Terminal Box

These terminal boxes utilize phase separation in order to segregate the different phases within the electrical system and mitigate the risk of possible damage occurring. Additionally, these terminal boxes give clear classification of each phase which makes the maintenance easier and safer.

Single Phase Distribution Box

The box of distribution for single-phase current acts as the main point of distribution of electrical energy that supplies electrical energy across an entire facility. It features germinal fuses or circuit breakers for every circuit to protect against accidental overload and malfunction due to short circuiting.

Common Residential Applications

In household uses, Single Phase Collector Boxes play a very important role in safely distributing electrical power throughout the home supporting lights, outlets, and equipment. Usually, they are placed in places like basement, utility room, or garage where they are easily approachable for maintaining purposes.

Key Selection Considerations

When selecting a Single Phase Collector Box, consider the following factors:

• Capacity: Ensure that the box can handle the electrical load required for your application.
• Material: Opt for either metallic or non-metallic cases according to the climatic conditions and specifications of longevity of the equipment.
• Safety Aspects: Opt for containers which have suitable shielding ratings like IP or NEMA ratings in order to ensure security against environmental threats.

FAQ

Q: What Is a Single Phase Collector Box?

A: It is a boxed unit that allows for the control and distribution of the power in an electrical network being used and is important to maintain organization and safety.

Q: What are the main types of Single Phase Collector Boxes?

Types can be subdivided into phase segregated terminal boxes and single phase distribution boxes, which correspond to their defined uses.

Q: What are the common residential applications?

A: The boxes are widely utilized in residential spaces to facilitate the distribution of electrical power into lighting units, outlets and electrical appliances in a safe and reliable manner.

Q: What are the key selection considerations for choosing a Single Phase Collector Box?

A: Consider capacity, material, and safety features when choosing the right box for your needs.

Recognizing the various categories and applications of Single Phase Collector Boxes is crucial for people engaged in electric installations or servicing activities. Being attentive to the particular demands of your electric systems and taking into account such characteristics as size and safety elements will help you choose the most appropriate method of reliable distribution of electric power. No matter whether you are in a household or a commercial environment, these boxes serve as an important component of electric systems of modern times.
