Single Phase Meter Box Guide: Types and IP Ratings
A good knowledge of how electrical systems are managed for your home (or small business) requires an understanding of what the Single Phase Electric Meter Box is. This guide will define a single phase electric meter box and describe the different types of boxes along with safety and functional aspects, such as the necessary IP ratings you should take into account when choosing one of these boxes.
What Is a Single Phase Electric Meter Box and Why Do You Need One?
In Residential and small commercially, a Single Phase Electric Meter Box is an important part of the circuit. The electric meter is contained within the box. It measures how much electricity a location uses. The installation of the Electric Meter Box must be done properly to ensure accurate billing from your Electric Company and that all electrical components are functioning as they should.
When you understand what this component does, you can manage energy use effectively. Also, by knowing the specifications of the component, you will know how to choose the right box for your needs.
Types of Single Phase Meter Boxes
There are several types of these meter boxes, each designed for specific applications:
Surface MountedThe product has been designed specifically to mount flat to the wall for easy installation. It can fit in places that have wall space available for projection out into the room.
Recessed: This type of installation offers a streamlined and aesthetically pleasing appearance since the unit is fitted behind wall finishes, helping create a clean and smooth appearance in confined installations where space is at a premium.
Flush Mounted: Requires more in-depth wall alterations for a seamless finish that blends with the wall.
It is important to consider all factors in order to determine which type is best for your situation; therefore, it is critical that you weigh all options before making your final decision.
Material, Longevity, and IP Protection Standards

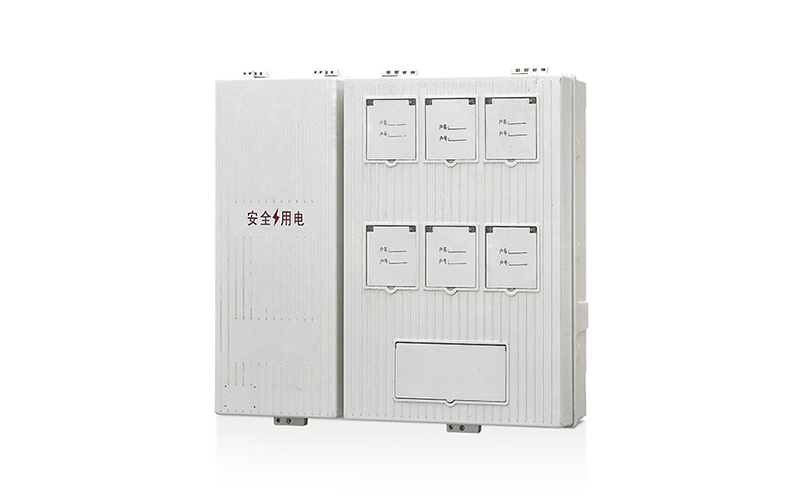

SMC composite materials are used in the production of the SMC Single-Phase Meter Box by means of the molded process. This creates an extremely durable product that is both highly insulative and strong with a flame-retardant FV0 rating. The SMC Single-Phase Meter Box has an expected lifespan of over 40 years when used indoors, while it is expected to last for over 30 years when used outdoors. The SMC Single-Phase Meter Box provides a durable solution for both single-family homes and multifamily homes, allowing for flexible combinations of installations and easy installation.
The IP44 protection rating ensures that outdoor equipment is safe from rain. More importantly, it is necessary to understand the various safety standards related to protection:
Enclosure Protection Rating: IP44 (Splash Water Protection)
Material Fire Rating: FV0 (Highest Flame Retardancy - UL94)
UV Resistance Rating: UV8 (Suitable for Outdoor Use)
The standards indicate how well the item is able to cope with various environmental conditions to ensure it will function properly when used in residential or civil power systems.
Common Installation Mistakes and How to Avoid Them
Improper installation can lead to problems. Common mistakes include:
1. Ignoring Local Codes: Always check local regulations regarding electrical installations.
2. Install the meter box at an appropriate height to facilitate easy access and keep both when servicing.
3. Do Not put too much weight in Your Box: Ensure that your box is not overloaded by consulting an electrician for calculations designed for your configuration.
You can avoid these errors and make your installation go more smoothly, and extend the life of your electrical system, by being aware of the problems ahead of time.
Conclusion
The ins and outs of a Single-Phase Electric Meter box are crucial for anyone who wants to install or upgrade electrical systems. By choosing the proper type, as well as using proper installation practices, you can improve your energy management. Don't forget to consult professionals if you have questions. Follow local regulations to ensure safety and compliance.
