What a Ring Main Unit Does for Your Power Distribution Setup

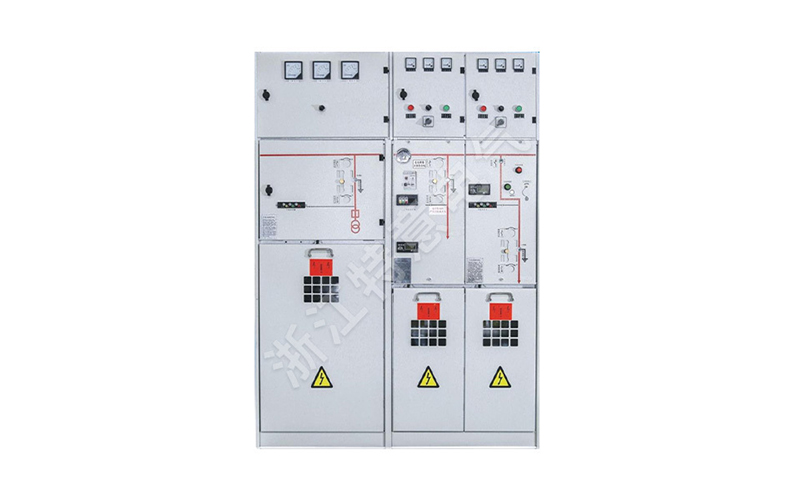

A ring main unit, often called an RMU, is a compact, sealed piece of switchgear that controls and protects medium-voltage power circuits in a closed-loop or ring configuration. Instead of running power in a single straight line from source to load, a ring main unit lets electricity travel through multiple paths. That simple shift means better uptime, easier fault isolation, and less stress when something goes wrong underground or behind a panel.
Why a Ring Main Unit Matters for Everyday Reliability
In any distribution network, a cable fault is a question of "when," not "if." A ring main unit changes how your system responds to that event. Rather than shutting down an entire section, a properly configured RMU allows the affected segment to be isolated while keeping the rest of the ring live. For facilities where downtime carries a real cost think manufacturing lines, data centres, hospital wings, or commercial high-rises that kind of resilience isn't theoretical. It shows up on the spreadsheet as avoided losses.
Where You'll Typically Find a Ring Main Unit Installed
Ring main units tend to sit at the intersection of utility supply and local distribution. Common deployment spots include:
- Underground residential and commercial power networks:Compact enough for confined vaults or substations.
- Industrial parks and campus-style facilities:Where multiple buildings share a medium-voltage feed.
- Renewable energy connections:Linking wind or solar farms to the local grid with switchable protection points.
- Infrastructure projects:Tunnels, airports, and railway lines where redundant power paths are non-negotiable.
In each of these, the ring main unit serves as a node that can either pass power through, feed a transformer, or isolate a problem without taking the healthy side offline.
Features That a Practical Buyer Looks At
When you're comparing options for a ring main unit, a few characteristics stand out because they directly affect total cost of ownership and on-site headaches:
- Gas-insulated design:A sealed-for-life SF₆ or alternative gas-insulated ring main unit removes the need for internal maintenance and keeps the footprint small, which matters in tight electrical rooms.
- Modular configuration:Two, three, or four-way switching plus a fuse-protected transformer feeder. Being able to specify the exact combination avoids paying for unused ways.
- Manual and motorised operation:In remote sites, motorised switching lets operators reconfigure the ring without travel. Manual handles remain essential for local control during outages.
- Visible break and earthing:A clear, lockable earth switch and a visible disconnection point make safe isolation unambiguous, which maintenance crews appreciate more than any spec sheet bullet point.
- Arc containment and internal fault rating:A ring main unit tested for internal arc withstand gives engineers more flexibility when placing it near occupied areas.
Questions to Ask Before Finalising a Ring Main Unit Specification
Bringing this back to practical project needs, here are the questions that tend to surface in the middle of procurement:
- What is the real fault level at this location? Rating the RMU too close to the maximum gives no margin. A conservative choice reduces issues as the network expands.
- Is remote monitoring on the roadmap? Motorised switches preparing for future SCADA integration avoid a second capital spend later.
- What does the local service support look like? A ring main unit that has accessible technical backup and parts availability tends to get commissioned faster and stay running longer.
A Bit on Installation and Day-to-Day Expectations
Installation is simple because a ring main unit arrives pre-tested and sealed. Most sit on a concrete pad or inside a compact substation. Front-facing cable terminations save space. After energising, routine care means visual checks, occasional switch operation to keep the mechanism moving freely, and gas pressure monitoring on models that need it. Active maintenance is minimal exactly what busy teams want.
Sized correctly and installed with future expansion in mind, a ring main unit runs quietly for years. The real advantage comes when a cable fault hits. Your crew isolates and restores in minutes, not hours. That kind of performance sticks with a buyer long after the project wraps up.
