What Is a Single Phase Energy Meter?
Single-phase energy meters measure the amount of electrical energy consumed by a single-phase electrical power distribution system. They are installed in a variety of locations including homes, small stores, apartments, offices, rental properties, and light commercial buildings, where the typical demand for electricity does not require a three-phase service.
In layman's terms, a single-phase energy meter keeps track of the amount of electricity consumed at the property over time, typically using kilowatt-hours (kWh) as its unit of measure. Utility companies, landlords, facility managers, and property owners depend on these readings for billing, monitoring energy use, and analyzing energy utilization trends. In most cases, these meters are installed in an enclosure or Single Phase Energy Meter Box, which helps protect the meter from weather, dust, tampering, and accidental damage, making daily operation safer and more reliable.
How Do Single-Phase Energy Meters Work?
Single-phase electrical systems typically consist of two wires in one circuit: a live wire and a neutral wire. Single-phase energy meters measure the voltage applied to the circuit and the amount of current being supplied to the load, allowing the energy supplied to the load to be determined from these two quantities. Modern digital meters typically show energy consumption on an LCD screen, whereas older electromechanical meters use a rotating disc and mechanical register.
Most modern meters are designed for precise measurement, extended service life, and stable performance. Many single-phase energy meters manufactured today also include advanced features such as prepaid metering, remote reading, communication modules, anti-tamper functions, and smart energy management. These functions are useful in housing communities, multi-family residential apartments, rental properties, small businesses, and electrical distribution projects.
Where Is a Single-Phase Energy Meter Used?
Single-phase energy meters are used in places where the electrical load is not high. For example, a typical household can usually run lighting, outlets, refrigerators and freezers, heating and cooling devices such as air conditioning units, washing machines, computers, and smaller electronic devices through a single-phase source of energy.
Examples of where single-phase energy meters may be found include residential homes, apartments, small retail stores, garages, workshops, temporary structures, garden offices, and small commercial businesses. In these types of projects, the single-phase energy meters are typically mounted with protective devices, such as circuit breakers, to create a safer and more organized installation, and many have their own dedicated electrical meter boxes.

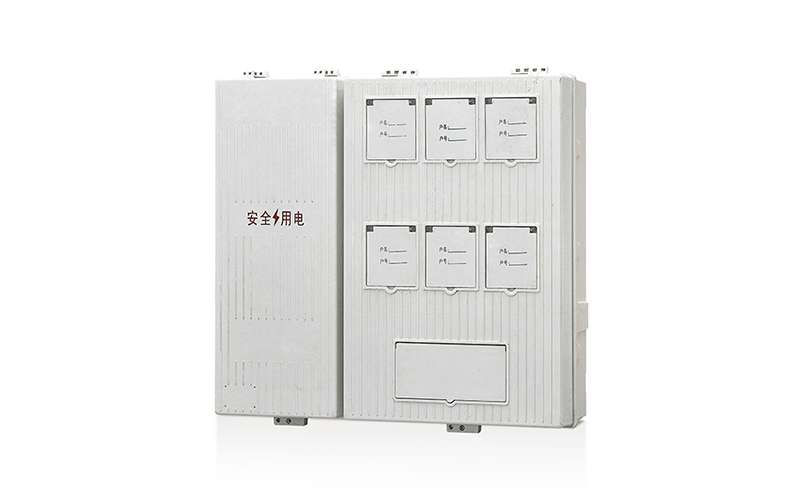

For any outdoor or public installation of a single-phase energy meter, purchasing a durable meter enclosure is as important as ordering the meter itself. A good quality Single Phase Energy Meter Box helps protect the metering equipment from rain, ultraviolet rays, corrosion, physical damage, and unauthorized access to the metering device.
Key Components of a Single-Phase Metering Installation
Most of the time, a single-phase energy meter system includes more than the energy metering device itself. In some cases, local electrical standards and project requirements may require other components, such as meter boxes, incoming terminals, outgoing terminals, circuit breakers, seals, cable glands, clear view windows, and mounting accessories.
The meter box fulfills a safety and maintenance purpose by keeping wires organized, limiting exposure to current-carrying conductors, and providing a safe space for inspections. For outdoor applications, weather resistance, flame retardancy, impact resistance, and insulation performance are important factors when selecting materials such as polycarbonate, ABS, SMC, fiberglass, or metal.
Importance of Meter Boxes for Single Phase Electric Meters
Meter boxes, also called enclosures or meter sockets, provide more than just protection. The enclosure plays a key role in determining how well the metering system performs, and it influences installation quality and long-term reliability. Without a proper meter enclosure, meters risk exposure to moisture, dirt, insects, direct sunlight, mechanical abuse, and tampering, all of which can negatively affect accurate metering, cause equipment failure, and create safety issues over time.
Using an appropriate single phase electric meter box can reduce maintenance costs and improve user safety for meter purchasers, contractors, and utility project managers. Practical installations often require features such as transparent covers, lockable doors, sealable mounting holes, flame-retardant housing, and waterproof enclosures.
Types of Single Phase Electric Meters
There are a few different types of single-phase energy meters available depending on the intended use and technical specifications. Electromechanical metering is the oldest type of single-phase energy meter, using a rotating disc as the basis for measuring energy consumption. While these meters are durable, electromechanical meters are being phased out by digital metering technology.
Digital single-phase energy meters have become prevalent due to their higher accuracy, clearer displays, smaller size, and additional functionalities. Smart single-phase energy meters add more capability through remote reading, data communication, load control, prepaid service availability, and integration with energy management systems.
In multi-tenant or landlord-owned buildings, prepaid electricity meters can reduce the complexity of billing tenants for their electricity consumption and limit disputes about payments. Smart meters can provide remote monitoring for utility and infrastructure projects by reducing the need for manual meter reading.
Selecting a Single-phase Energy Meter
When selecting a single-phase energy meter, it is important to understand the electrical load, the installation environment, the standards in your area, and how the meter will be used. Before selecting a meter, make sure you understand the voltage rating, current range, accuracy class, installation method, and communication options. If you are installing a meter in a home, common current ratings may include 5(60)A, 10(80)A, and other similar ratings based on local standards.
A meter installed outdoors will also require special attention to the enclosure. An appropriate Single Phase Energy Meter Box should have adequate IP protection, UV resistance, a reliable locking system, sufficient internal volume for components to fit properly, and easy accessibility for servicing. In addition, utilities may require that the meter box has an anti-tamper design and sealing capability.
Another important piece of information to confirm is whether the energy meter conforms to proper standards such as IEC, MID, ANSI, or other applicable local requirements. This helps ensure that the meter measures accurately, operates safely, and will be accepted by electrical authorities or project inspectors.
Single-Phase vs Three-Phase Energy Meters
A single-phase energy meter measures the amount of energy utilized in a single-phase supply system, so it can be used in residential or small commercial applications. A three-phase energy meter measures the amount of energy utilized in a three-phase supply system, and is typically used in larger commercial, industrial, or higher-load applications.
A three-phase supply system provides a more stable supply of electrical energy for high-volume or high-demand applications, such as large machinery, elevators, large HVAC systems, pumps, manufacturing equipment, and other applications with high electrical demand. Systems that use a single-phase configuration tend to be simpler, cheaper, and less difficult to install for ordinary daily electricity consumption.
A single-phase meter is generally sufficient for sites that run only typical household appliances and light electrical equipment. If high starting power, large drives, or balanced power distribution across multiple phases is required, a three-phase supply and three-phase meter may be necessary.
Benefits of Using a Single-Phase Meter for Energy
One of the primary benefits of using a single-phase meter is its simplicity. A single-phase meter is easy to read, install, and use in most residential and small commercial situations. Because single-phase wiring is usually less complicated than three-phase wiring, installation time and labor costs are often lower.
Another benefit of using a single-phase meter is availability. Single-phase meters and compatible boxes are widely available in many markets, making replacement and maintenance more convenient. The availability of digital meters also provides reliable measurements of usage, which can make it easier for users to review their electricity consumption.
For property owners, a single-phase meter can support reasonable billing and better energy management. For end users, the installation of a single-phase meter provides transparency about the amount of energy utilized, as well as a clearer understanding of when consumption spikes occur.
Limitations of Using a Single-Phase Meter for Energy
While many applications can efficiently and adequately use a single-phase metering solution, there are some applications that are not suitable for single-phase metering. The primary limitation is the maximum load that can be supported. A single-phase electrical supply is generally inappropriate for operating large motors, large industrial equipment, or buildings that utilize a tremendous amount of electrical power.
A single-phase electrical service is also likely to experience higher degrees of voltage fluctuation than a properly balanced three-phase electrical service under heavy load. Several types of equipment may experience reduced performance or efficiency in this situation. Because of this, many electrical engineering professionals encourage the use of three-phase electrical systems in commercial kitchens, factories, workshops with heavy machinery, and large buildings.
When purchasing a single-phase meter, consumers should consider the amount of electricity needed to support the existing load, as well as future load needs. Installing a single-phase system in an area that will require three-phase power in the future may create substantial additional cost.
What Features Should Consumers Consider When Choosing a Single-Phase Energy Metering Box?
Procurement teams, electrical contractors, distributors, and project owners should assess an electrical metering box based on both electrical safety and installation convenience. In general, an acceptable electrical metering box should provide sufficient strength and protection for the energy meter, enough interior space to accommodate wiring, and an easy-to-read and easy-to-maintain exterior surface.
Weatherproofing, flame-retardant materials, insulation performance, impact resistance, sealing design, cable entry options, and lock quality are important characteristics to check. If the single-phase metering box will be located in a public place or outdoors, anti-tampering features can help stop unauthorized persons from accessing the energy meter or stealing electricity.
Additionally, when evaluating different electrical metering boxes, single-phase customers should consider several styles, including surface-mounted boxes, flush-mounted boxes, single-meter enclosures, multi-meter boxes, or custom metering cabinets. The type of metering box you choose depends on the installation location, utility regulations, and project size.
Installation and Safety Issues
It is critical that single-phase energy meters are installed by a qualified electrician or authorized technician. Inaccurate wiring can lead not only to incorrect electric readings, but also to equipment damage, electric shock, and potential fire hazards. Local electrical codes, utility regulations, and the manufacturer's installation instructions must be followed when installing any meter.
Meters should be installed in a location that allows easy access for reading and inspection, while also protecting the meter from unnecessary physical damage. When a meter is installed outdoors, the meter box should meet an appropriate protection rating and should be mounted securely to a wall, pole, or other mounting structure.
Once the meter and enclosure have been installed, the utility company or an authorized third party may seal the meter and enclosure. This prevents unauthorized tampering and verifies that the metering system has been approved for service.
Frequently Asked Questions About Single Phase Energy Meters
What is the purpose of a single phase energy meter?
The purpose of a single phase energy meter is to measure the electricity consumed by the user of a single phase electrical system. This type of meter records electricity usage in kilowatt-hours, which enables landlords, utilities, businesses, and homeowners to determine usage, create accurate bills, monitor energy consumption, and manage energy use more effectively.
What is the difference between a three phase and a single phase meter?
A single phase meter is intended for use with a single phase electrical service, which is typical in residential areas, apartments, and small businesses. A three phase meter is intended for use with a three phase electrical service, which is typically found on industrial sites, large businesses, or locations with large electrical loads. Three-phase meters can accommodate larger loads and provide better load balancing, while single-phase meters are inexpensive and easy to use for smaller applications.
Disadvantages of Single-Phase Metering
The biggest disadvantage of single-phase metering is its inability to support higher-powered applications, such as large electric motors or large industrial equipment. Also, under heavy load conditions, a single-phase system may provide a less stable supply than a three-phase system. Those planning to expand or grow in the future should check that they will continue to receive sufficient power from their single-phase supply over time.
Are Single-Phase Energy Meters Suitable for Outdoor Installation?
Yes, a single-phase energy meter can be installed outdoors if it is placed inside a suitable weatherproof metering enclosure. The enclosure should protect the meter from rain, dust, dirt, sunlight, corrosion, and unauthorized access. For outdoor installations, it is extremely important to select the correct IP-rated electricity metering enclosure to ensure safety and long service life.
Are Single-Phase Energy Meters Suitable for Home Use?
Yes, most homes and apartments can utilize single-phase energy meters effectively. A single-phase energy meter can measure the power used by lighting, outlets, household appliances, air conditioning units, and general household loads. However, if the property requires a significant amount of electricity or has special equipment, a professional load assessment is recommended to ensure adequate electric service.
When Should You Change from a Single-Phase to Three-Phase Metering System?
A change from single-phase to three-phase may be required when the existing supply can no longer safely sustain the electrical loads. Symptoms of load exceeding capacity include frequent circuit breaker tripping, plans to use higher-power equipment, large motors, machinery for commercial purposes, or planned large commercial heating, ventilation, and cooling (HVAC) systems. Business owners planning to expand should review their electrical supply capacity before adding additional equipment.
Changing to a three-phase power system can reduce voltage drop, improve system performance, and provide a more balanced distribution of energy throughout the system. However, adding a three-phase power supply can also involve significant costs. Therefore, an electrical assessment by a qualified professional and a review of long-term power needs should be performed before making such a change.
Why Single-phase Metering is Still Important
While smart grids and advanced energy systems continue to evolve, single-phase metering is still an important way to maintain effective residential and small commercial electrical distribution. It offers a strong balance of accuracy, affordability, and simplicity for distributing energy to millions of locations worldwide. This is also why single-phase electricity meters provide the basis for fair billing and responsible use of electricity.
Metering solutions include more than the electricity meter itself. They include the various components that create an effective metering solution, such as the meter, protective enclosure, correct installation, and compliance with all related codes and restrictions, therefore providing a safer and more efficient electrical system.
A single-phase energy meter is a practical device that measures the energy consumed at residential sites, including homes, apartments, small stores, and other low-demand commercial buildings. If you choose the correct electricity metering enclosure for your single-phase energy meters, you will have safer, more manageable, and better-protected electrical metering devices for many years. If you are selecting single-phase electrical meters for a residential application or obtaining meter enclosures for utility installations, focus on accuracy, protection, code compliance, and installation quality to ensure reliable and predictable performance in real-world applications.
