TY-DFW Floor-standing Cable Branch Box
Application scenarios
1. Urban public power grid
Commercial and densely populated areas
●Urban commercial centers, high-rise buildings and large shopping malls
●Residential communities and public facilities areas (such as schools and hospitals)
Municipal power grid upgrades
●Urban power grid transformation project, replacing traditional overhead lines and realizing cable distribution network
●Electricity distribution nodes along streets/highways
2. Industry and special scenarios
Heavy industrial base
● Mining areas, steel smelting, automobile manufacturing, petrochemical and cement production and other large-scale enterprise factories
Adaptability to harsh environments
●Fully sealed structure design supports underground deployment and withstands flooding (protection level IP33~IP66)
● Anti-corrosion materials can cope with highly corrosive environments such as chemical industry and coastal areas
3. Emerging infrastructure and green energy
●New energy supporting nodes
Applicable to the power collection and distribution of clean energy projects such as photovoltaic power stations and wind power bases
Smart city infrastructure
Integrate into smart grid system to support digital power management (matching metering technology upgrade is required)
Summary of the advantages of scene adaptability
Fully insulated and sealed to ensure electricity safety in commercial and residential areas
Flood and corrosion resistance, suitable for industrial areas and complex underground environments
Modular and flexible deployment significantly reduces the cost of urban power grid transformation
Innovative structural design
Modular assembly system
High-precision compression molding technology is used to achieve ±0.5mm dimensional tolerance control
The building block quick-install structure increases installation efficiency by more than 60%
Triple protection system
Electrical protection: Fully insulated housing design (dielectric strength ≥ 3kV/mm), eliminating the need for a grounding system
Environmental protection: The composite material has passed the GB/T2423 salt spray test (1000h) and UV aging test (3000h)
Physical protection: Labyrinth seal structure verified by IP54 protection level
Box build list, shape and dimensions
TY-DFW-6F Appearance and installation dimensions

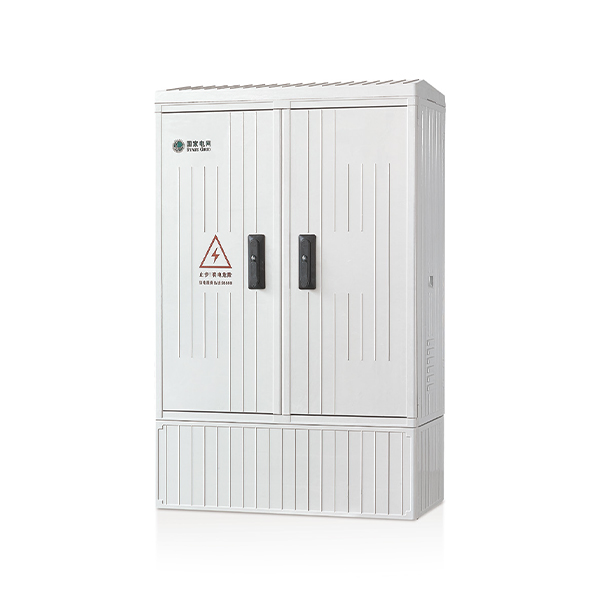

TY-DFW-8F Appearance and installation dimensions

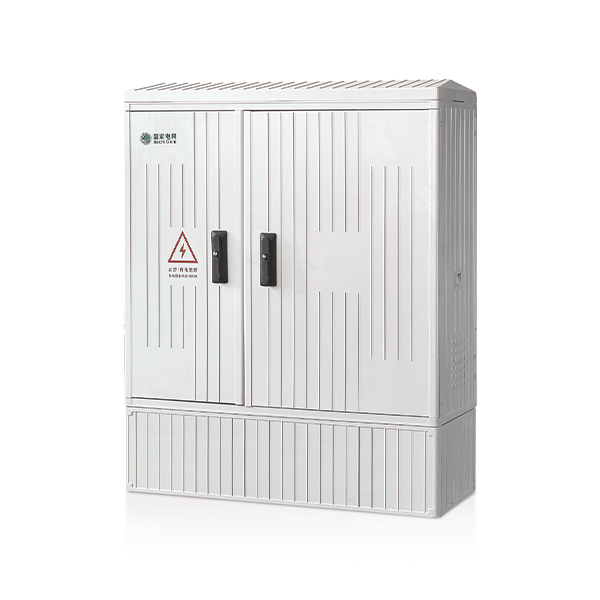

TY-DFW-10F Appearance and installation dimensions

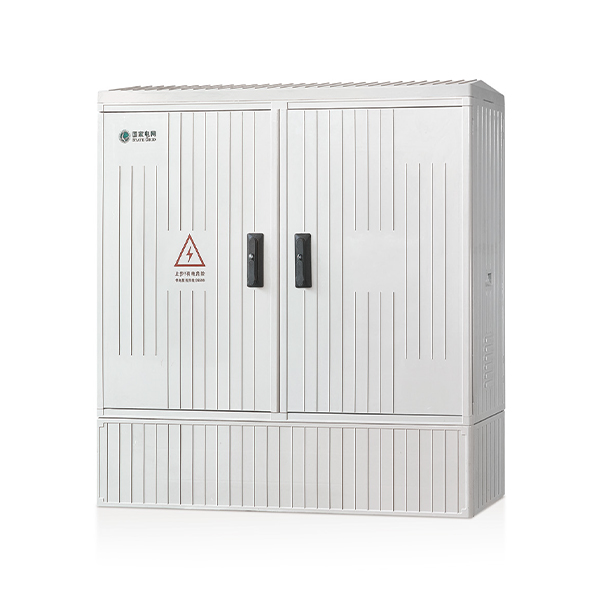

TY-DFW-12F Appearance and installation dimensions
