TY-KZX Wall-mounted control box
Core Features
1. Power distribution center
Centrally manage multi-circuit power distribution and distribute power to terminal devices (such as lighting, motors, etc.) through built-in circuit breakers, disconnectors and other components to achieve refined control of loads.
2. Electrical safety protection
The glass fiber reinforced plastic box (SMC material) provides high insulation (insulation resistance ≥ 20MΩ) and flame retardancy (UL94 V0 level), effectively isolating arc risks;
Integrated leakage protector (RCL fuse) and overcurrent protection device can quickly cut off the fault circuit to prevent electric shock and electrical fire.
3. Environmental adaptability design
IP44 and above protection levels (rainproof design) resist outdoor rain and dust intrusion, and -25℃~+50℃ wide temperature range operation ensures stability in extreme climates;
It has the characteristics of anti-ultraviolet aging and chemical corrosion resistance (resistant to weak acid and alkali), and is suitable for industrial waste gas and coastal high salt fog environment.
4. Optimize operation and maintenance convenience
Transparent window or openable panel design supports real-time monitoring of operating status (such as instrument readings, switch positions) without opening the box;
Modular component layout facilitates quick replacement of circuit breakers, electric meters and other components, reducing maintenance time and costs.

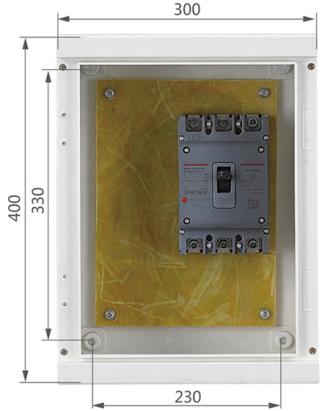

TY-KZX-3A Appearance and installation dimensions

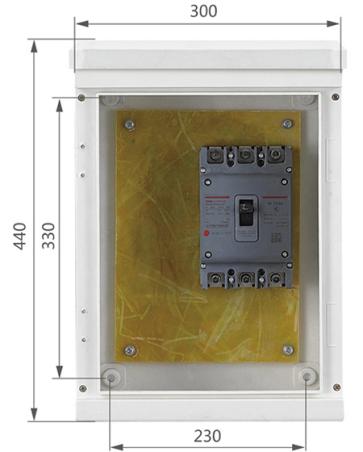

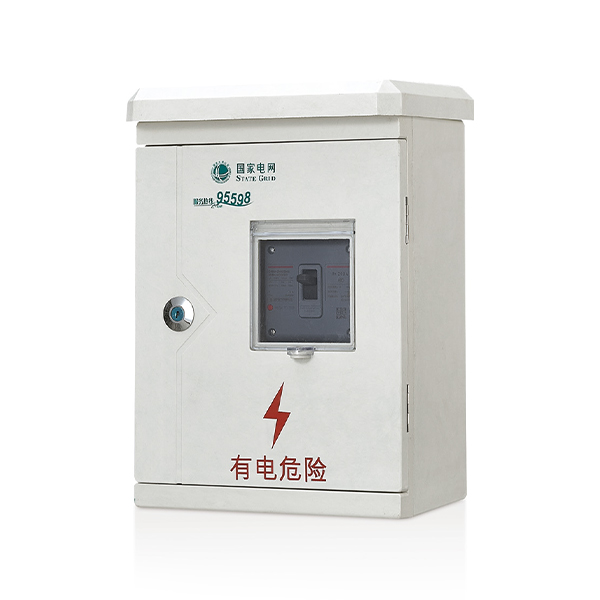

TY-KZX-3B Appearance and installation dimensions

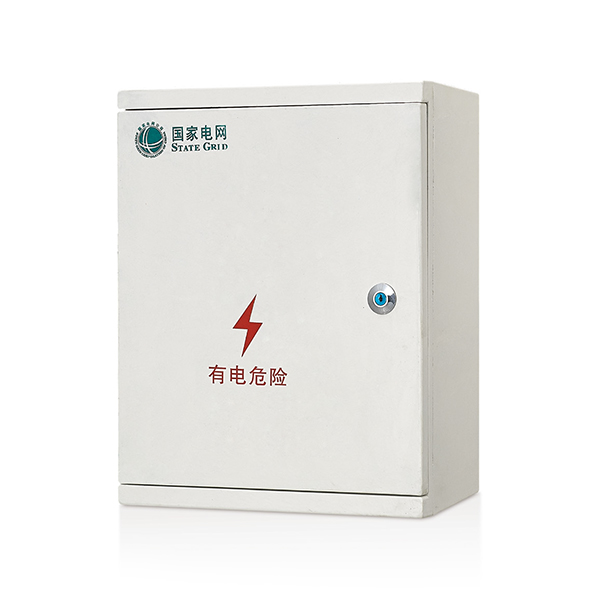

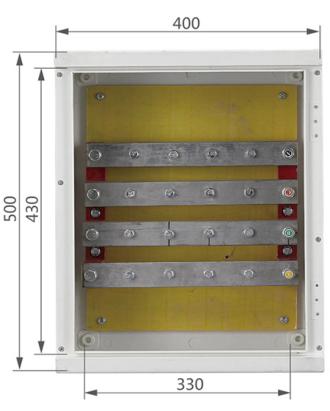

TY-KZX-4A Appearance and installation dimensions

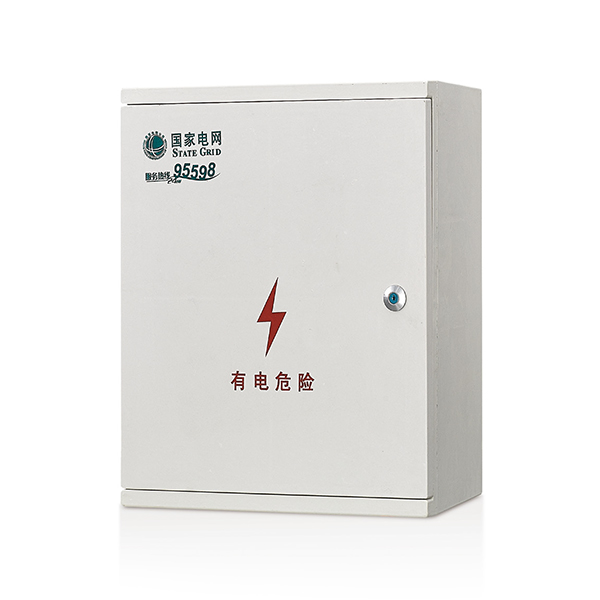

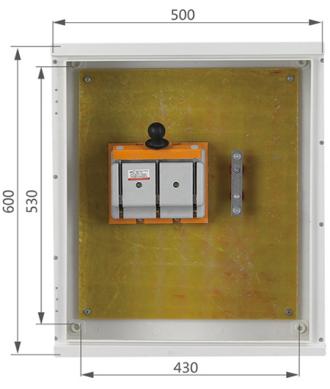

TY-KZX-5A Appearance and installation dimensions

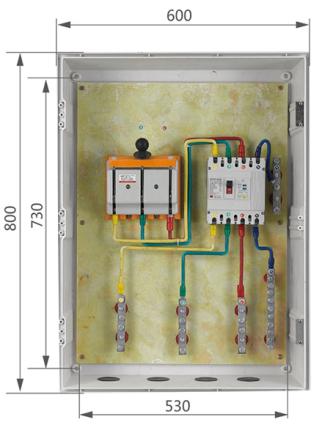

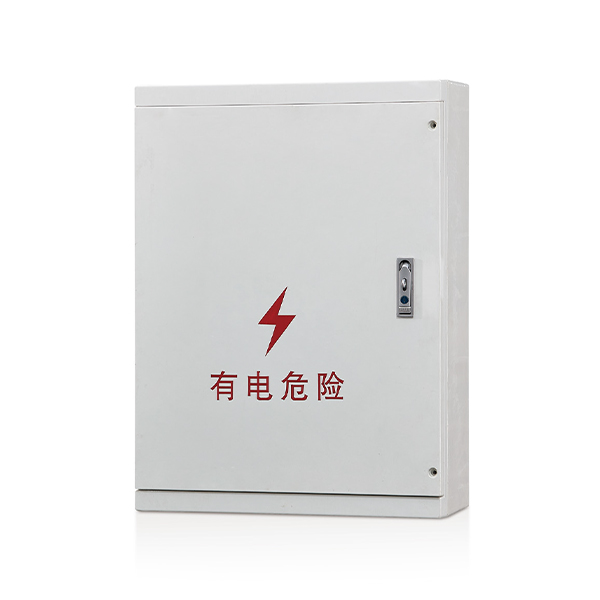

TY-KZX-6A Appearance and installation dimensions
