TY single-phase electric energy metering box(transformer type) (plastic type)

Product Benefits

1.Accurate power metering: It adopts a transformer design and measures AC single-phase power (rated voltage 220V, current 10A-250A) through a current transformer to achieve high-precision power statistics and management. It is suitable for energy consumption monitoring in residential and commercial power consumption scenarios.

2.Meter protection and anti-tampering: Plastic housing (such as fiberglass or flame-retardant PC) can effectively protect the meter from physical impact, environmental corrosion and human damage. For example, the rainproof design (IP44 protection level) prevents rainwater intrusion, and the transparent window design facilitates reading while preventing illegal operation.

3.Safety and insulation protection: Plastic materials (such as SMC glass fiber reinforced plastic) provide high insulation resistance (≥20MΩ), and flame retardant performance (UL94 V0 level) can prevent short circuit fire, ensuring safe operation in an environment of -25℃~+50℃ and avoiding the risk of electric shock.

4.Environmental adaptability and durability: The material is corrosion-resistant and aging-resistant, suitable for outdoor or humid environments (humidity ≤ 80%), with a service life of more than 30 years, reducing maintenance requirements, and the concealed wiring design simplifies the construction process.

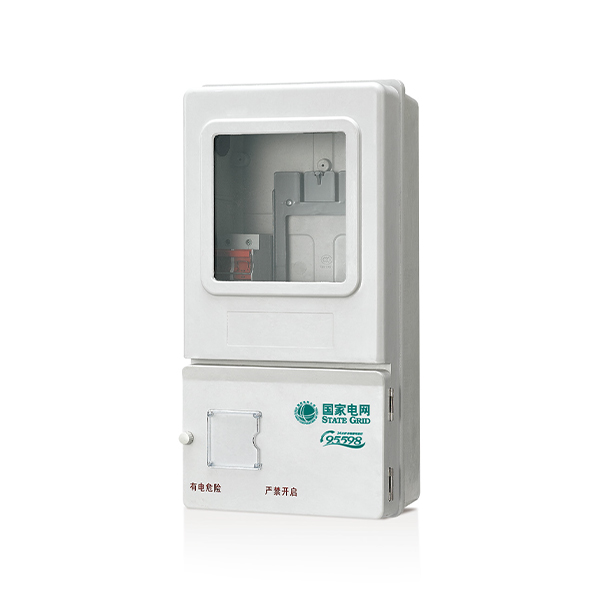

TY-SXD1-1D Model, configuration and installation dimensions

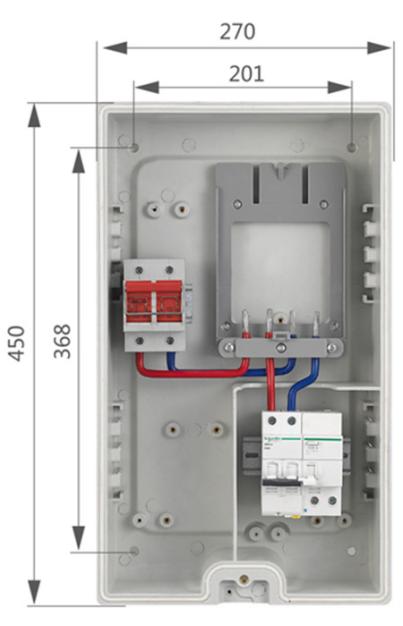

TY-SXD1-1H Model, configuration and installation dimensions

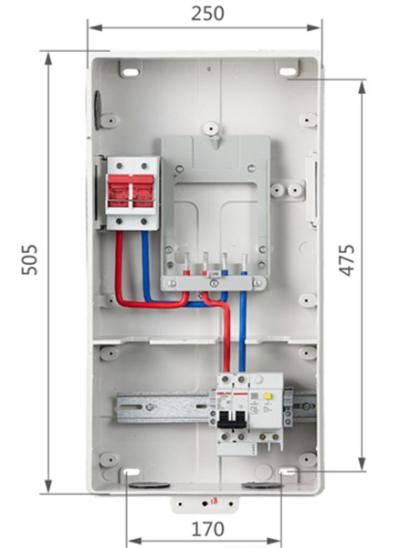

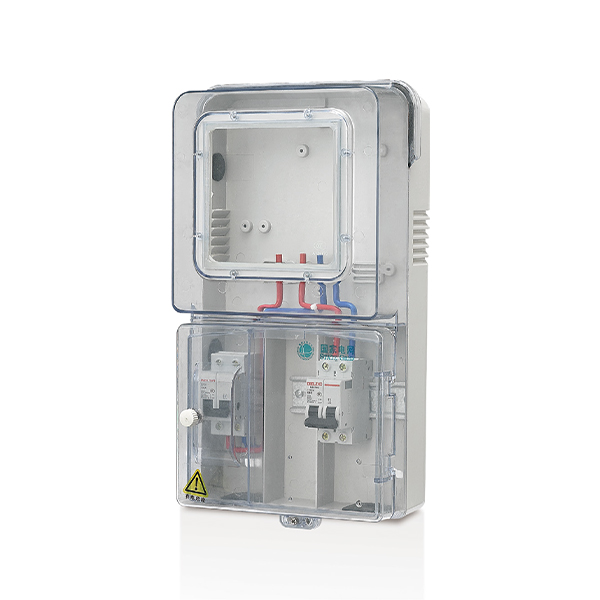

TY-PXD1-1C Model, configuration and installation dimensions

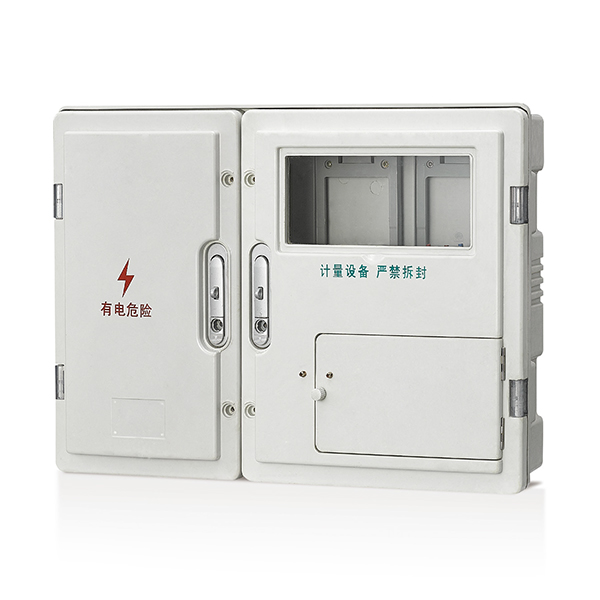

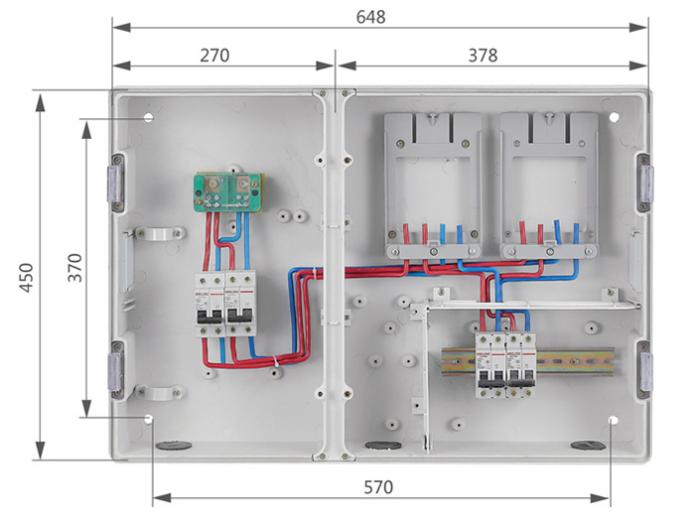

TY-SXD2-2B Model, configuration and installation dimensions

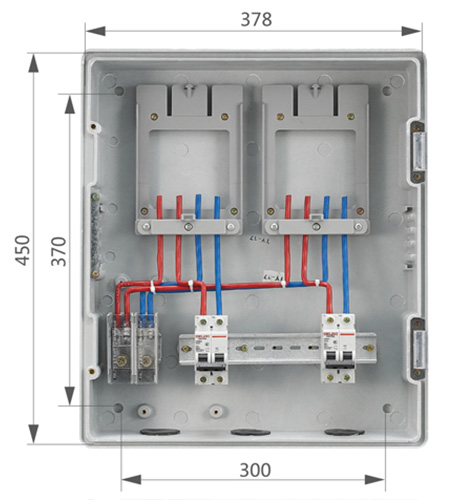

TY-SXD2-2D Model, configuration and installation dimensions
