TY-SXD1-1C single-phase collector box

Product Overview

Teyi Electric's TY series FRP electric meter boxes use SMC composite material compression molding technology, integrating high-strength glass fiber and unsaturated polyester resin, and have excellent insulation performance (withstands voltage above 10kV), impact strength (≥150MPa) and V-0 flame retardant properties. Its patented anti-aging formula enables the product to maintain stable operation for 30 years in harsh outdoor environments, and its indoor service life can reach 40 years, far exceeding traditional metal/plastic meter boxes. The innovative modular design supports free combination installation of 1-12 households, and the hidden wiring trough and IP55 protection level ensure safe and efficient electricity metering in residential areas, commercial power distribution and other scenarios, especially suitable for outdoor substation projects that require long-term weather resistance.

Usage Environment

●Temperature adaptability:
Operating temperature range: -25℃ ~ +50℃
24-hour average temperature limit: ≤+35℃

●Environmental cleanliness:
Clean air without corrosive pollutants

●Humidity Control:
Relative humidity ≤80% at 40℃
Low temperature environment allows higher relative humidity (need to avoid condensation)

●Protection performance:
Built-in moisture-proof design to adapt to humidity fluctuation environments
Meets IP55 protection level (suitable for outdoor installation)

Core electrical performance

Wide range of current carrying capacity: The rated current of the main busbar covers the range of 10A to 250A, adapting to various power usage scenarios
Extreme short-circuit protection: The rated short-time withstand current of the main busbar is up to 30kA, ensuring system integrity in the event of a power grid failure
Insulation safety guarantee:
Insulation resistance ≥ 20MΩ (far exceeding conventional standards)
Rated insulation voltage 800V, building a double electrical barrier

Environmental adaptability

All-weather protection architecture: IP44 protection level design, effectively resisting dust intrusion and all-round splashing water
Global frequency compatibility: supports 50Hz/60Hz dual-frequency power grid system, meeting international standard application requirements
Technical Notes: 30kA short-circuit withstand capability is equivalent to being able to withstand a peak current shock of approximately 63kA. The 800V insulation voltage provides a 15% safety margin for the 690V rated working voltage. The first "4" in the IP44 protection level indicates protection against solid foreign objects ≥1mm, and the second "4" represents splash water resistance.

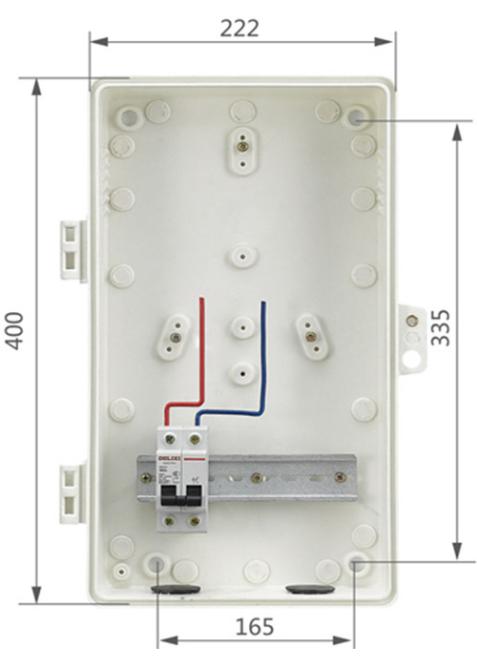

TY-SXD1-1C Model, configuration and installation dimensions

TY	SX	D1	1	C
Company Code	SMC non-metallic metering box	Single-phase single-meter meter box	Table number	Third Generation



Configuration	Name	Component Model	Quantity
Incoming switch	Miniature circuit breakers	CDBK C type 2P 6A	1
