TY-SXD1-FSH1 waterproof box
Product use scope and conditions of use
The TY series of electric energy meter boxes integrate single-phase and three-phase types, and are suitable for power supply systems with rated current of 10A-250A, AC 50Hz or 60Hz, and voltage of 220V to 690V, and perform single-phase and power electric energy metering and control tasks; its operating environment requires a temperature range of -25℃～+50℃ (average temperature ≤+35℃ within 24 hours), and the relative humidity does not exceed 80% at 40℃ under clean air conditions, and higher humidity levels are allowed under low temperature conditions.
Installation Specifications
◆Pre-installation checks
Thoroughly check the structural integrity and component completeness of the cabinet before installation
◆Targeting criteria
Use vertical installation, and the inclination angle is strictly controlled within the range of ≤5°
Site selection principle: no mechanical vibration/strong impact source, no chemical corrosion risk area
Deploy in a cool and dry environment, avoiding continuous direct sunlight
◆Chemical protection requirements
Do not contact with strong alkalis, oxidizing acids, amines, ketones, chlorinated hydrocarbons and aromatic solvents
◆Physical protection measures
During use, be careful to prevent collisions and scratches with sharp objects to keep the surface protective layer intact
Standardized installation process
Box opening
Remove the central fixing screw at the bottom and open the box according to the standard process.
Basic fixation
Locate the wall drilling point according to the preset hole position
Lock the base after implanting the expansion tube
Final assembly of the upper cover
Key protection specifications
Protection Category Implementation Standard
Mechanical protection Avoid vibration and shock sources and regularly check the fixed structure
Chemical protection: Establish a hazardous chemical isolation mechanism
Environmental protection: Implement temperature and humidity monitoring and UV shielding measures
Strict compliance with this specification can significantly extend the service life of metering equipment and ensure the reliability of power system operation.
Core electrical parameters
1.Core performance indicators
Parameter Category Technical Specifications
Rated current 10A–250A (full range coverage)
Short-time withstand current ≥30kA (main busbar system)
2.Insulation performance
Insulation resistance ≥20MΩ (normal working condition)
Rated insulation voltage 800V (UI value)
Electrical adaptability 50Hz/60Hz dual frequency compatible
Protection level IP44 (dust and splash proof)
3.Key Features
Current carrying capacity: The main busbar supports a wide current load range from 10A to 250A
Short circuit protection: 30kA high short circuit current tolerance ensures system stability
Insulation reliability: Double insulation design (resistance/voltage) ensures safe operation
Environmental adaptability: IP44 protection level to cope with dust and liquid splashing scenes

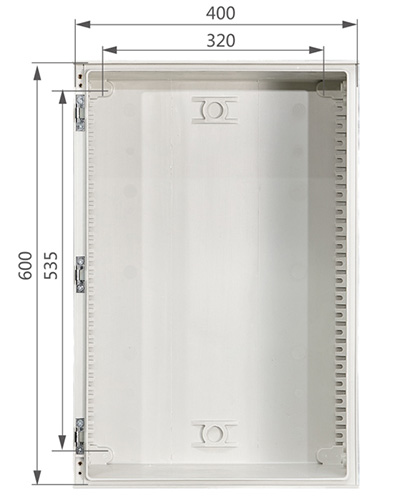

Appearance and installation dimensions
