TY-SXS1-CJ three-phase collector box

Material properties

Made of SMC fiberglass composite material
High mechanical strength and excellent insulation
Passed UL94 V-0 flame retardant certification
Acid and alkali corrosion resistance, UV aging resistance

Product Advantages

Indoor service life ≥ 40 years
Outdoor service life ≥ 30 years
Surface finish Ra≤0.8μm
Modular combination design (supports flexible configuration of 1-12 households)

Application Features

Supports both open and concealed installation
Integrated rainproof canopy design (protection level IP54)
Hidden wiring channel
Applicable to -40℃~+80℃ environment

Product Effect

1. Power collection: The three-phase collector box can collect the three-phase current from different power sources together to facilitate subsequent distribution and use.

2. Power distribution: It can distribute the collected power to multiple loads or devices to ensure efficient use of power.

3. Protection function: The collector box is usually equipped with protection devices, such as overload protection, short-circuit protection, etc., which can effectively prevent electrical faults from damaging equipment and personnel.

4. Fault monitoring: Some collector boxes are equipped with monitoring systems that can monitor current, voltage and other parameters in real time, detect faults in time and issue alarms.

5. Improved safety: By enclosing cable connections and electrical components in the collector box, electric shock and other safety risks are reduced, and the safety of operation and maintenance is improved.

Applications

1. Industrial production: widely used in factories, mines, metallurgy and other industrial places for centralized collection and distribution of three-phase power.

2. Construction site: On the construction site, the collector box is used to distribute temporary power to ensure the normal operation of construction equipment.

3. Power system: used for centralized management and distribution of electricity in power substations, distribution rooms and other places.

4. Commercial facilities: Used for the distribution and management of electricity in large commercial facilities such as shopping malls, supermarkets, etc.

5. Water treatment and sewage treatment plants: used to collect and distribute electricity to ensure the normal operation of equipment.

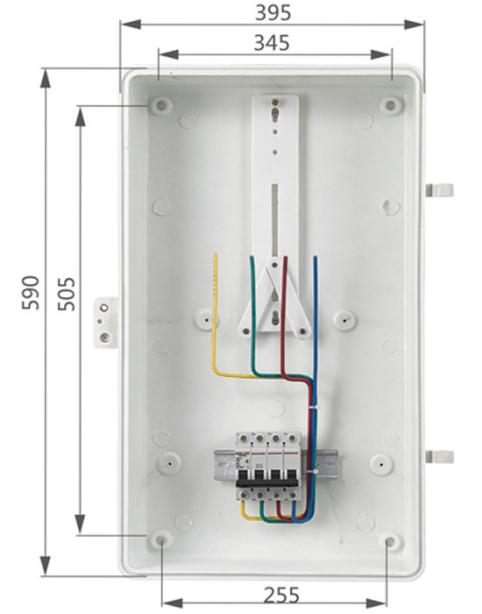

TY-SXS1-CJ Model, configuration and installation dimensions
