TY-SXS2 three-phase electric energy metering box

Materials and manufacturing process‌

SMC composite materials
It is molded by unsaturated polyester resin glass fiber reinforced plastic (SMC), which has high mechanical strength and permanent anti-deformation properties, and completely solves the defects of metal/plastic box such as easy corrosion, aging, poor insulation, etc.
Surface process optimization
The smooth and beautiful surface treatment is resistant to UV rays and chemical media (weak acid, alkali) corrosion, and is suitable for industrial waste gas and coastal high salt fog environments.

Core performance advantage‌

Electrical safety: Insulation resistance ≥ 20MΩ, flame retardant grade UL94 V0, effectively isolating arc risks
Environmental durability: Outdoor lifespan > 30 years, indoor lifespan > 40 years (more than twice that of metal cabinets)
Protection capability: Rainproof structure (IP44 protection level), dustproof and foreign body intrusion
Anti-electricity theft design: Lead lock + concealed wiring to prevent unauthorized operation

Installation and scene adaptability

Flexible deployment mode
It supports wall hanging, pole fixing or wall embedding, and is compatible with single-family/multi-family combination installation. No additional modification is required for cross-family wiring.
◆Widely applicable scenarios‌
Civilian field: residential areas, old power transformation projects, suitable for prepaid electricity meters and leakage protectors;
Outdoor scenarios: Rainproof design ensures safe operation of outdoor meters and stable operation in the temperature range of -25℃~+50℃.
◆ Convenient operation and maintenance
The modular structure supports quick replacement of meters and circuit breakers, and the transparent window enables status monitoring without unpacking.

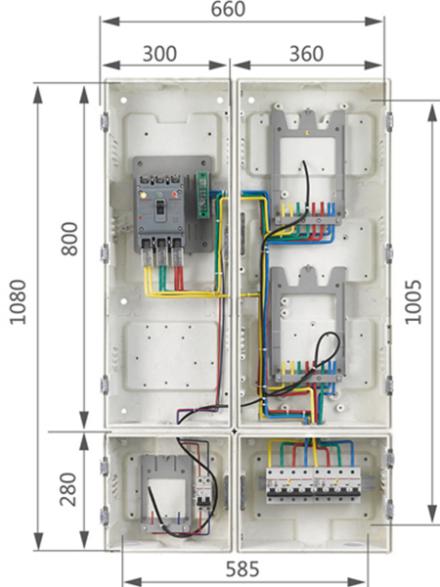

TY-SXS2-2D Model, configuration and installation dimensions

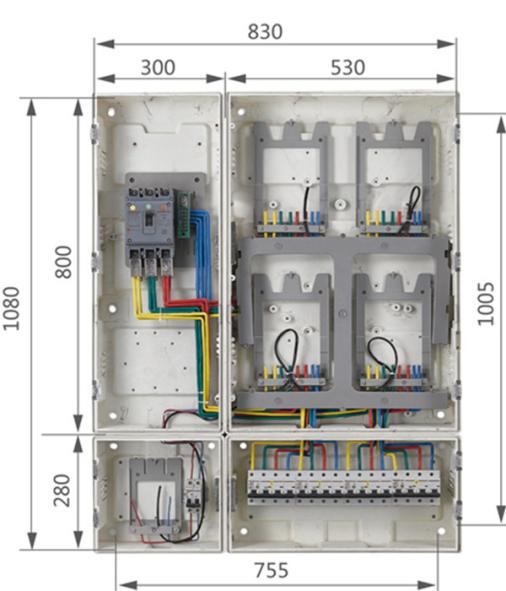

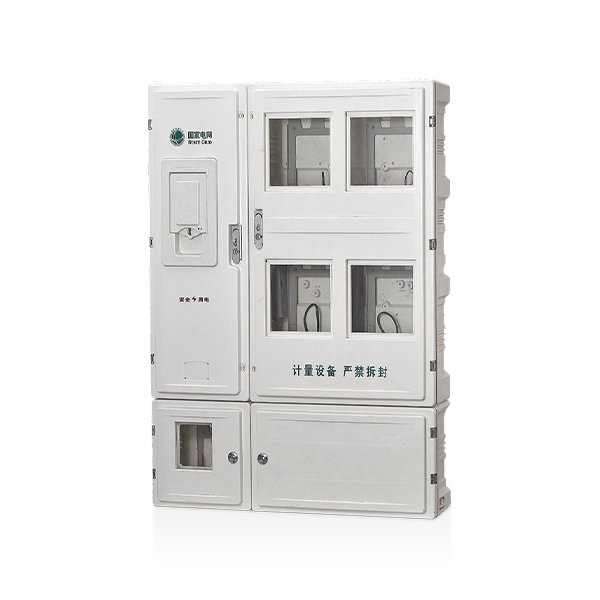

TY-SXS2-4D Model, configuration and installation dimensions

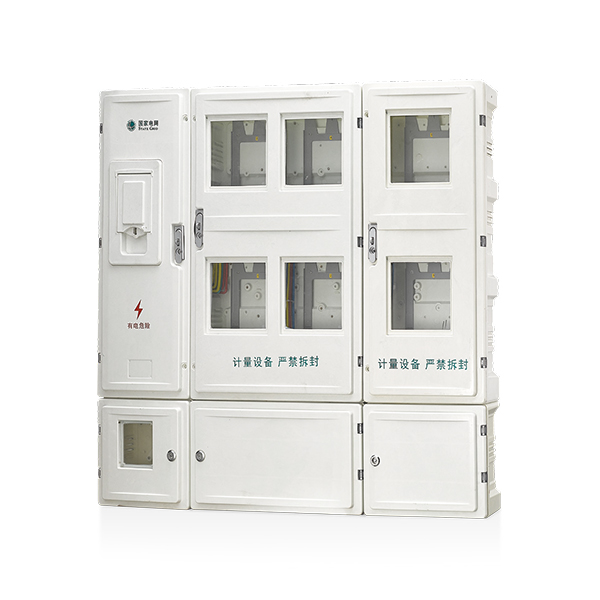

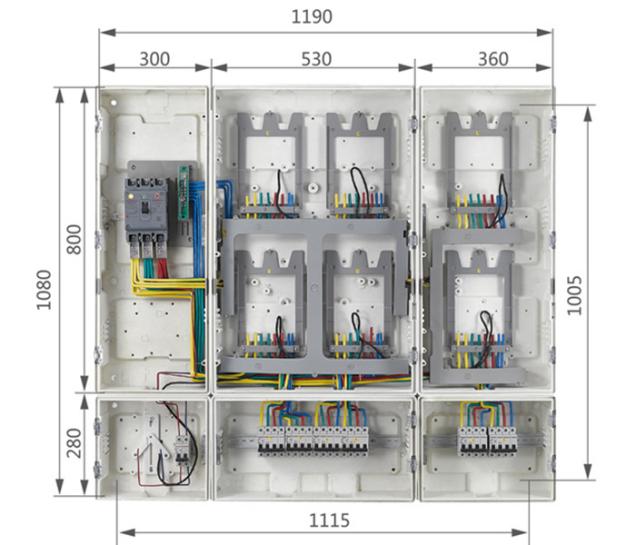

TY-SXS2-6C Model, configuration and installation dimensions
