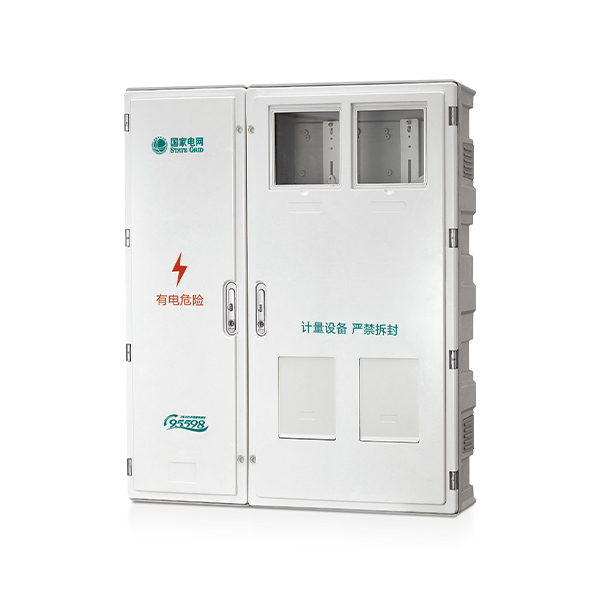

TY-SXS3 three-phase electric energy metering box (transformer type)

Function and application scenarios

Effect:
1. Energy metering: used to accurately measure energy consumption in three-phase power systems.
2. Signal conversion: Convert high voltage signals into low voltage signals through transformers to ensure safe and accurate measurement.
3. Data monitoring: real-time monitoring of current, voltage, power and other parameters to provide data support.
4. Protection function: With overload and short circuit protection, it ensures the safe operation of the equipment.

Application scenarios:
1. Industrial enterprises: used for power metering in factories and production lines.
2. Commercial Buildings: Monitor energy usage in large commercial facilities.
3. Power companies: used for energy metering in substations and distribution networks.
4. Public facilities: power monitoring and management in places such as schools and hospitals.

Product use scope

TY series electric energy metering box (transformer type) includes two parts: single-phase meter box and three-phase meter box. It is suitable for AC 50Hz or 60Hz, rated working voltage up to 220V, 380V, 690V, rated working current of 10A-250A power supply system, for single-phase electric energy and power energy measurement and control management.

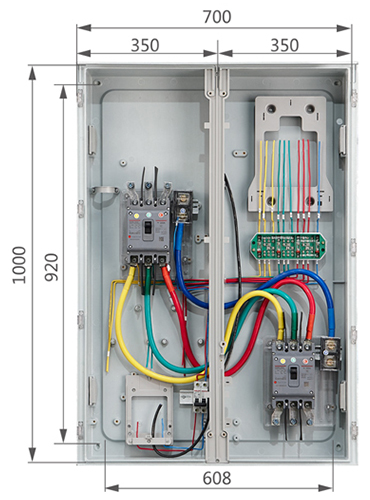

TY-SXS3-1A Model, configuration and installation dimensions

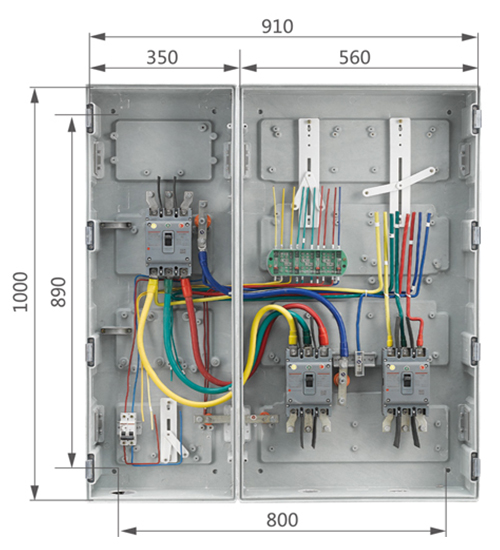

TY-SXS3-2A Model, configuration and installation dimensions
